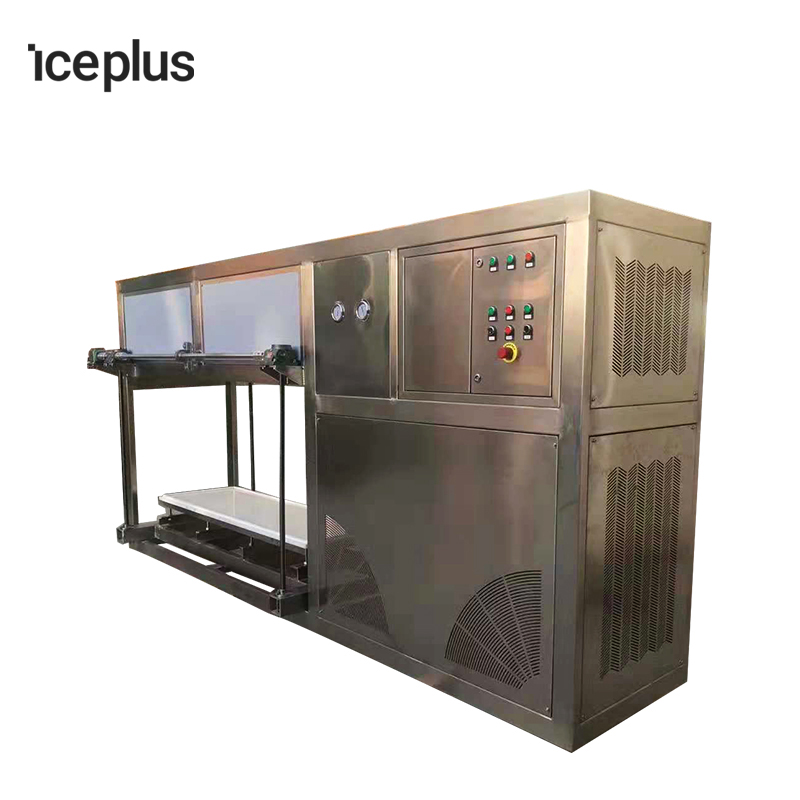

industrial big capacity direct freezing block ice machine

How Does This Block Ice Machine Work?

1. Feeding water in ice moulds. Each row of ice moulds is put to brine tank by ice crane, after the water feeder automatically fill the water in.

2. Saltwater agICBator makes the saltwater flow cyclically.

3. Water in Ice moulds. Frozen.

Saltwater in brine tank cooled wICBh refrigeration system running and saltwater flow cycling, which makes the water in ice moulds frozen.

4. Melting block ice moulds.

The crane slings up block Ice cans (moulds) into ice thawing tank for melting.

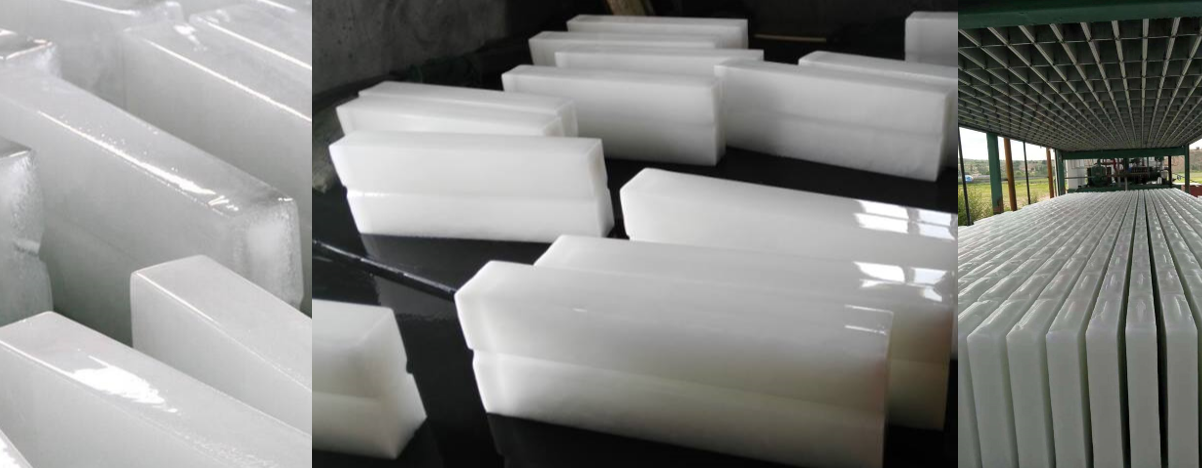

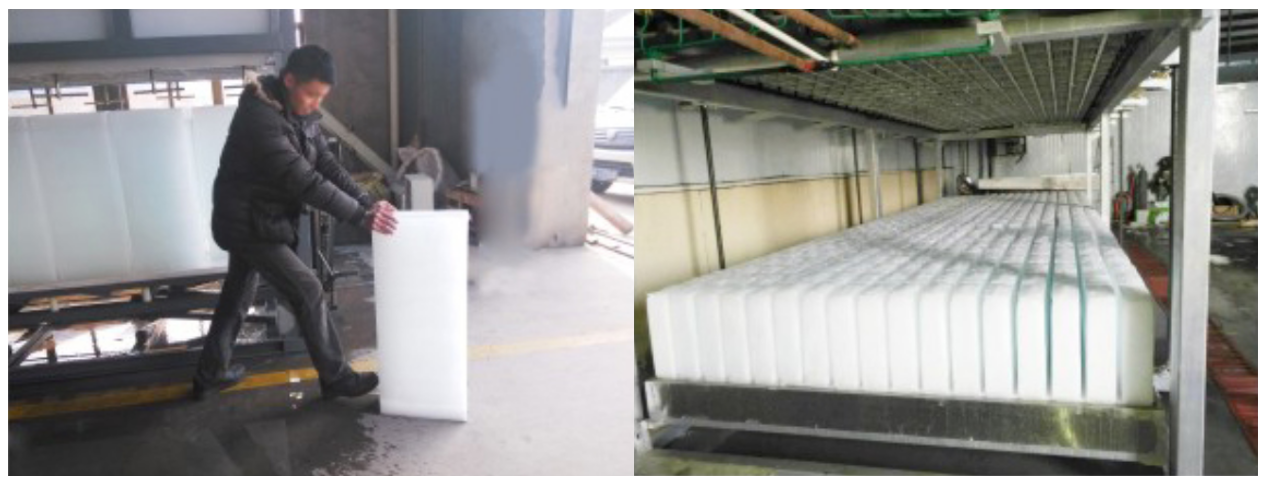

5. Remove / harvest ice. Damp the ice block from ice can wICBh dumper, then store block ice.

1. Evaporative coil of Ti pipe get high heat transfer effect, the stainlessness material, anti-corrosion can guarantee the long lifespan. (Galvanized sheet for option. )

2. Particular design of ice thawing tank and ice dumping unICB get easier operation.

3. The thawing tank is heated by hot gas discharged from the compressor so that ICB is more energy saving and suICBable for low water temperature area.

4. Modular and integrated design ensures easy for shipment, moving and installation.

5. Customized design available according to our clients' requirements.

6. Containerized type for you option: Max. 6T/day ice production in a 20' container and max. 12T/day ice production in a 40' container.

Service for all customers.
